SQUARES
SQUARES, is a project located in Brazil, destined for the Rocinha favela. The project name refers to the elements used to create an open structure. These elements are triangular squares, corner squares and as joining elements, nuts, screws and washers. With these elements a module was made, which began to be joined together until a structure was obtained.
The purpose of this project is to create an open structure whose circulation is continuous and its insertion into the favela is as quick as possible in which the inhabitants of the favela take ownership of it and can make different uses of it.
The purpose of this project is to create an open structure whose circulation is continuous and its insertion into the favela is as quick as possible in which the inhabitants of the favela take ownership of it and can make different uses of it.
- 00 - Description

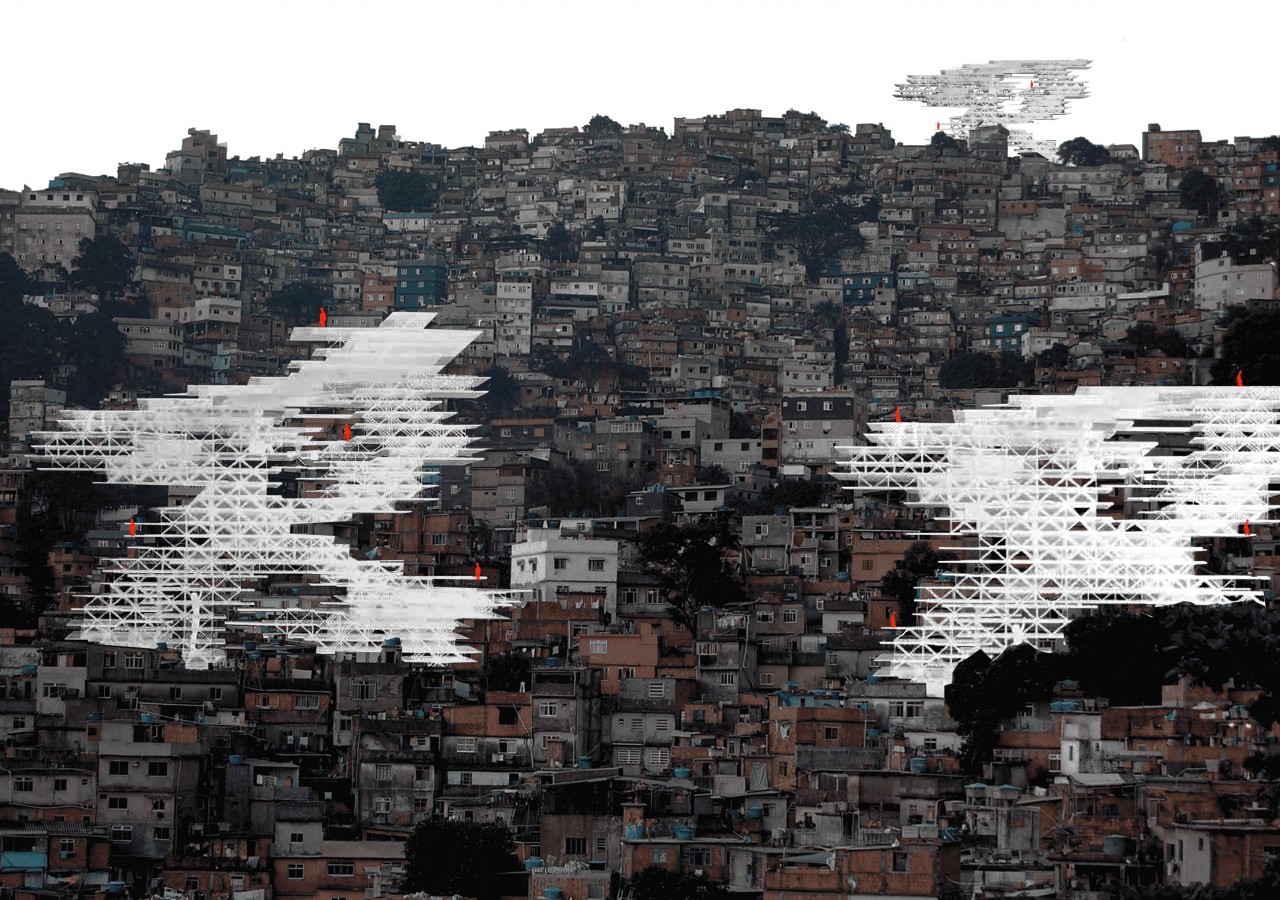

- 01 - initial photomontage

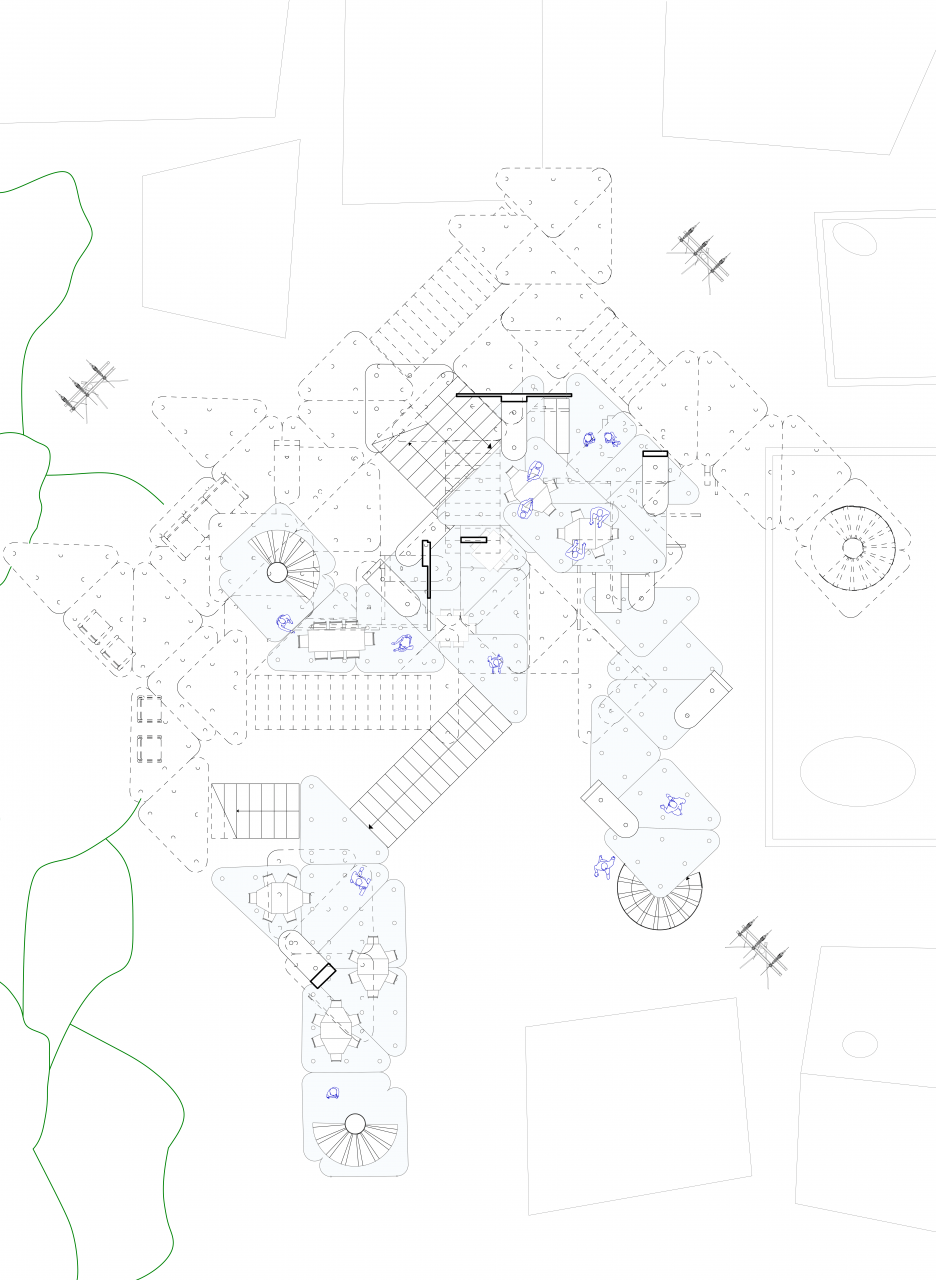

- 02 - plan ofthe structure

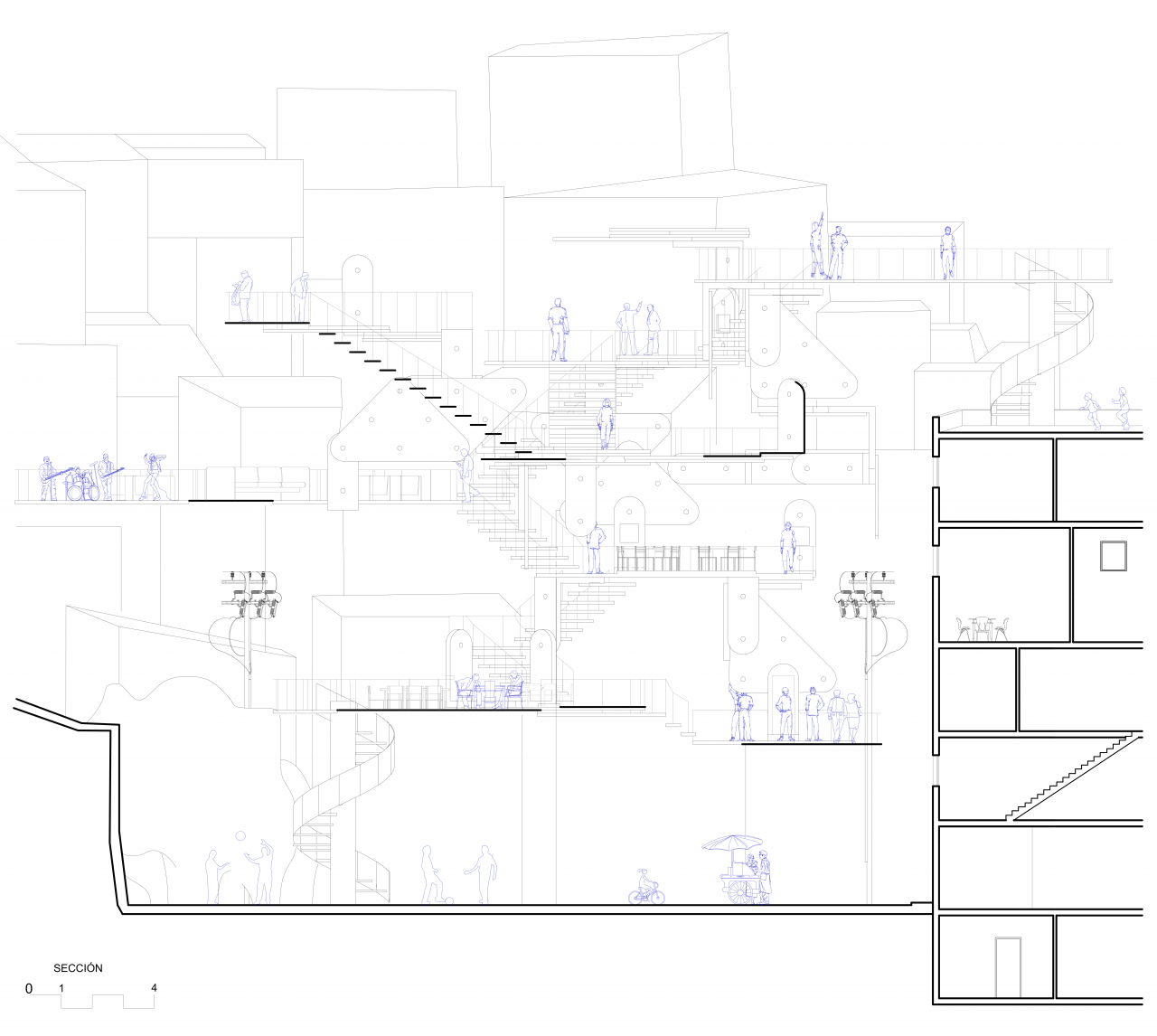

- 03 - section

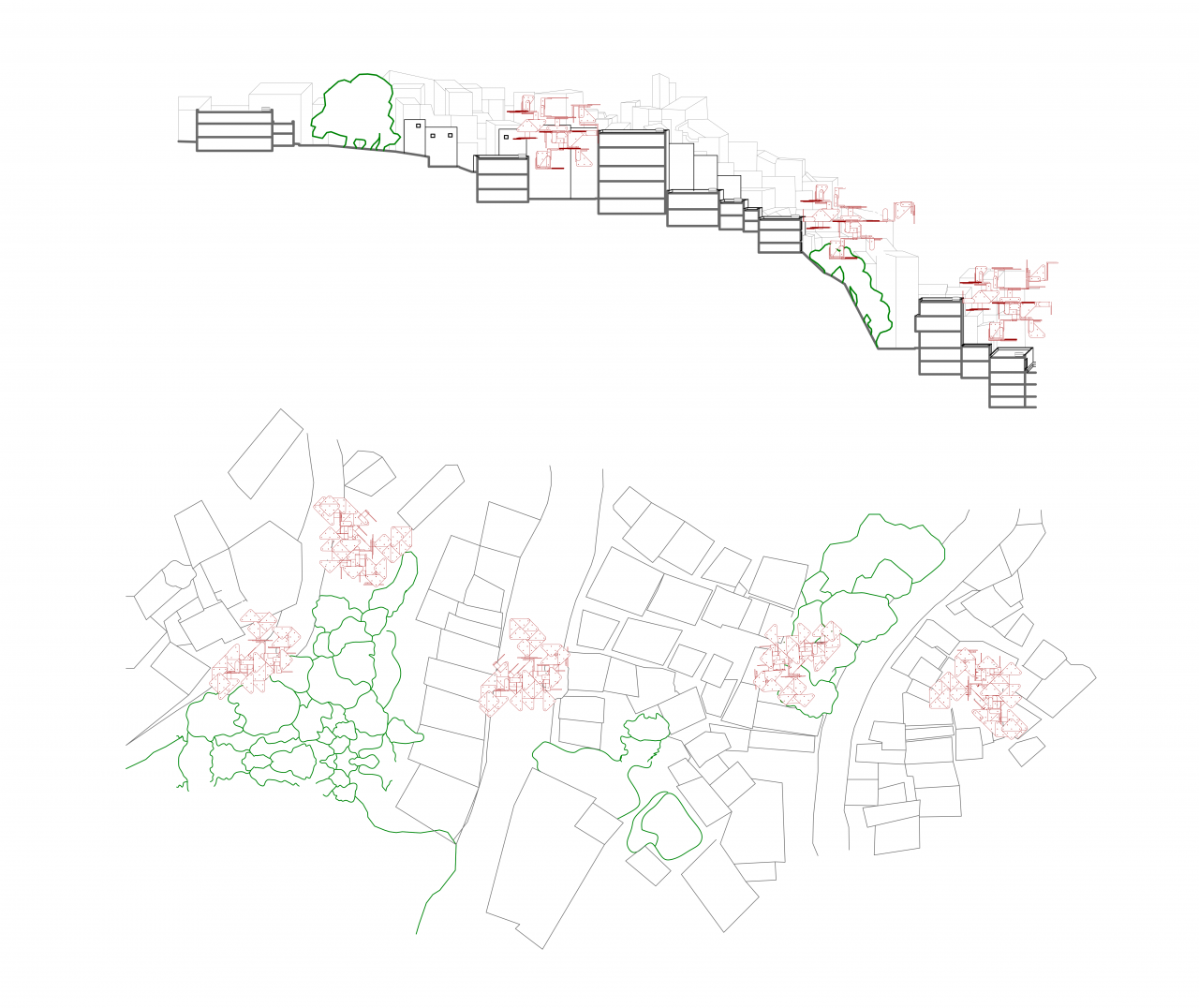

- 04 - locationplan+section

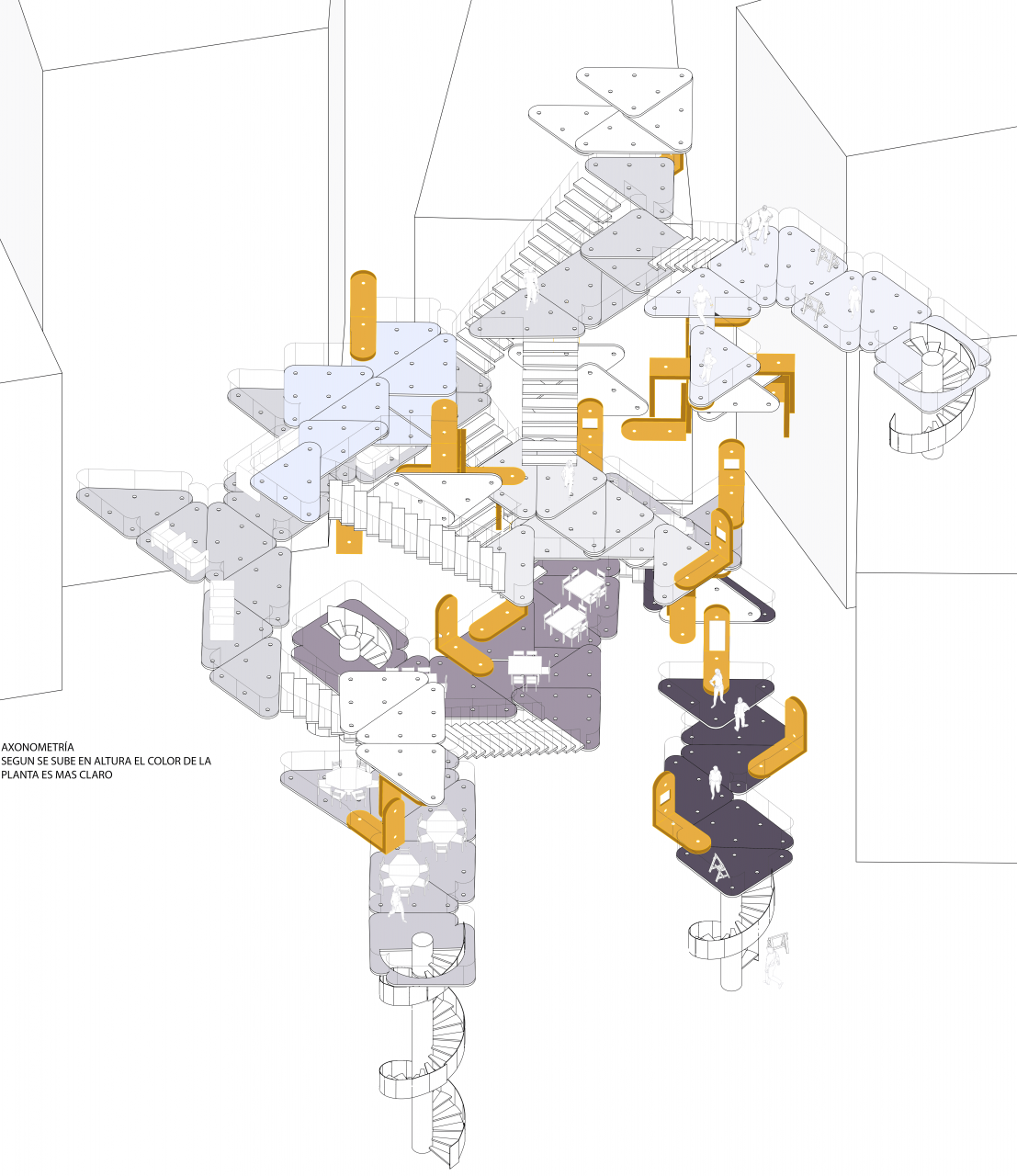

- 05 - isometric

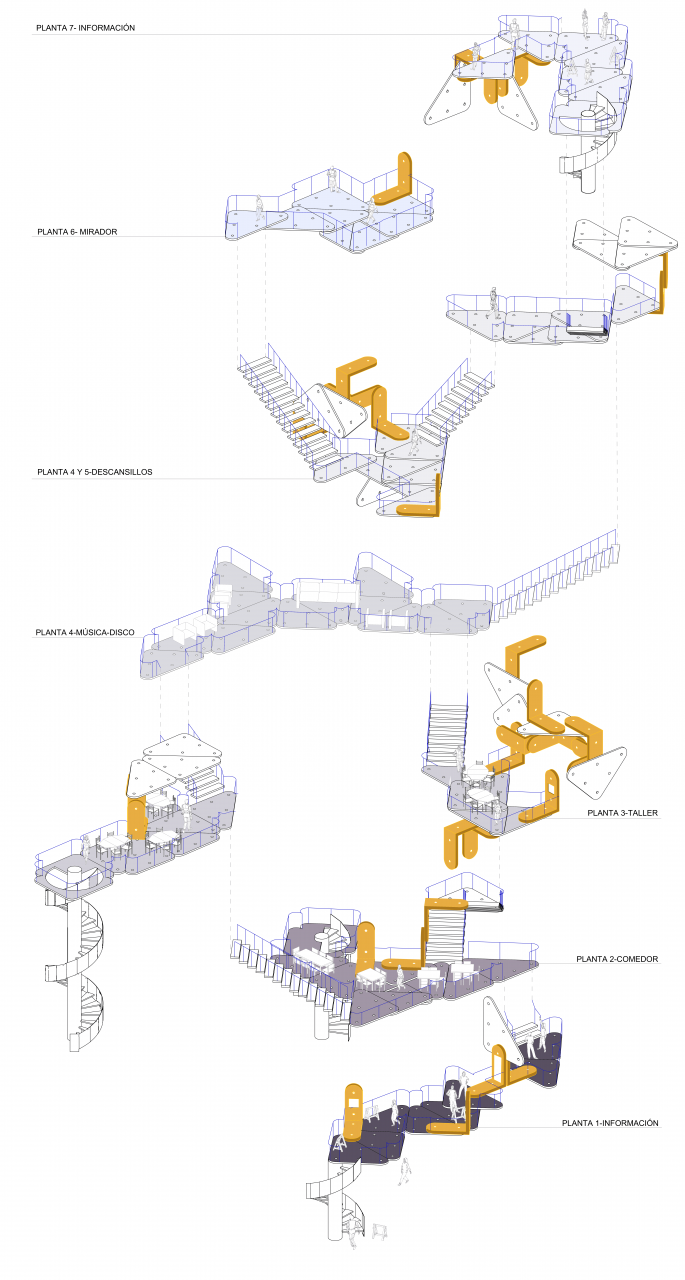

- 06 - isometric displayed

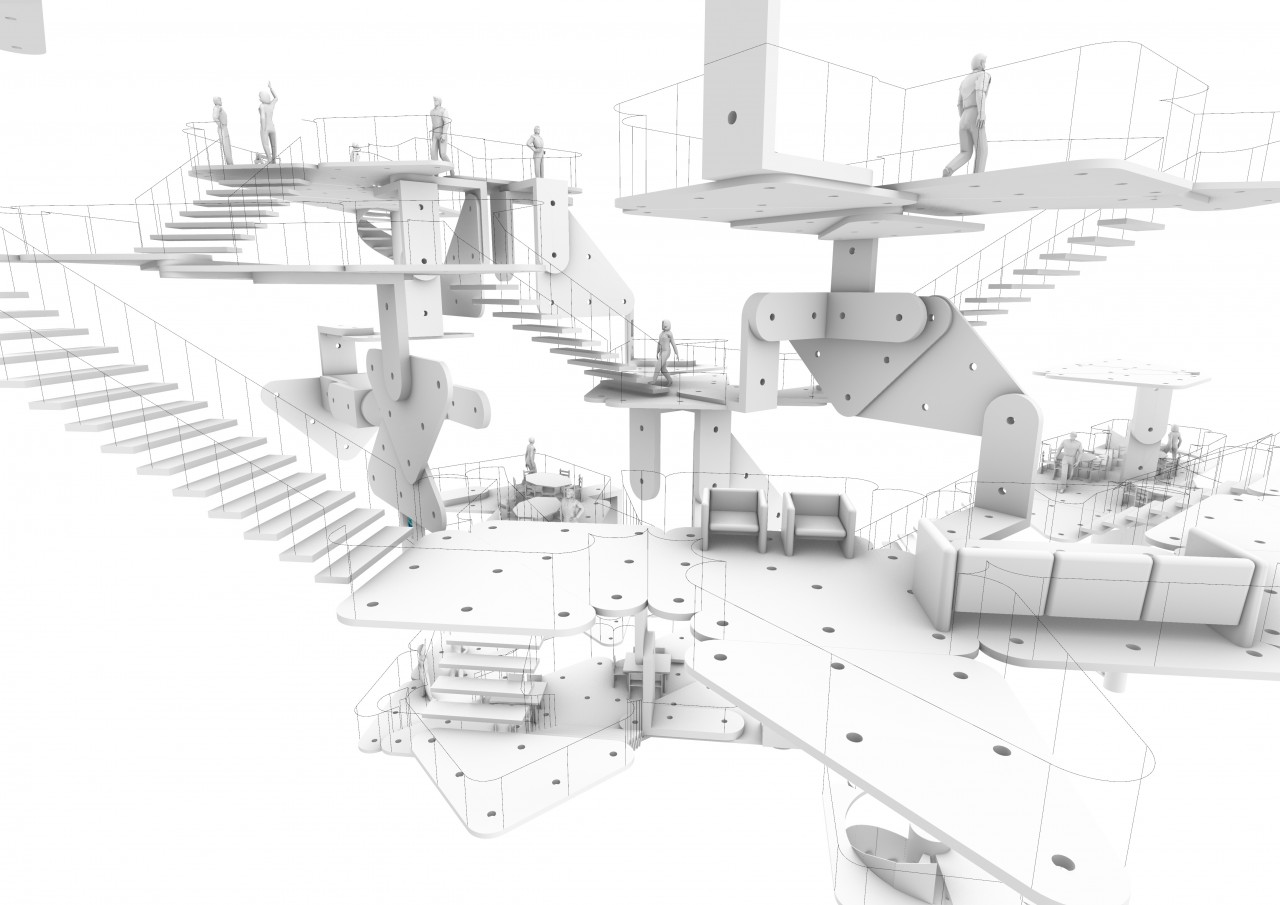

- 07 - 3d structure

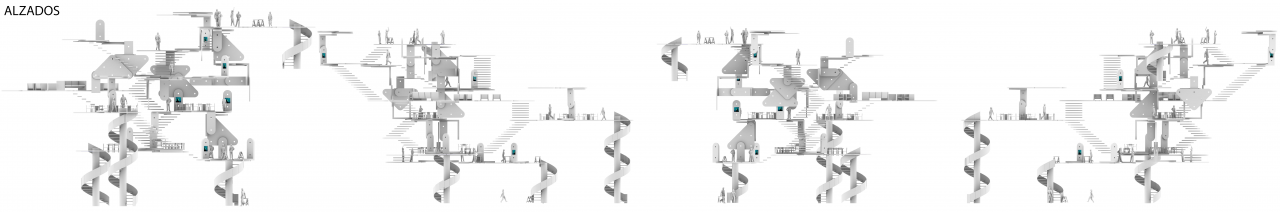

- 08 - structure elevations
- 09 - photomontage
- 10 - Video
